Name: Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force
Brand: Cartesy Diagnosis Technology CO.,Ltd
SKU: 2CTPB-10G
Price: 1.00 USD
Availability: InStock

Casa > prodotti > Provatore di freni >

Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force

Luogo di origine:

Cina

Marca:

Cartesykj

Certificazione:

Numero di modello:

2CTPB-10G

Contattici

Richieda una citazione

Dettagli del prodotto

Nome:

Testatore di freni a piattaforma di lusso

Montaggio dell'auto:

Bmw - Europa

Garanzia:

12 mesi

Nome del modello:

2CTPB-10G

Porta:

GUANGZHOU

Mass. Peso dell'asse permesso ((kg):

10000

Distanza di prova della forza di frenatura (N):

Errore di indicazione della forza di frenata:

≤ ± 3%

Dimensioni della piastra di pesatura:

610*1500(Larghezza*Lenghezza)

Combinazione:

2 piastre ((4 piastre facoltative)

Fornitore di alimentazione (A):

220v 300W

Dimensione ((Lungo*Larghezza*Altezza):

2854×1000×58 ((2 palti)

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 unità

Prezzo

$2,000.00 - $13,836.00/sets

Imballaggi particolari

Confezione in legno

Tempi di consegna

20-25 giorni lavorativi

Termini di pagamento

L/C, T/T

Capacità di alimentazione

300 set/set al mese

Prodotti correlati

Apparecchiatura per l'ispezione dei veicoli della linea di prova auto test di frenata 4CTPB-3-4 Tester freni a piastra ultrapiatta

Ottenga il migliore prezzo

BMW Europa Montaggio Auto 4T Linea di Test Automobilistica Piatta Simulazione Piatta Strada Super Piatta Tester Freni

Ottenga il migliore prezzo

116 Montaggio veicoli CTFZ-13B Macchina per prove di sollevamento e carico della cinghia frenante per camion

Ottenga il migliore prezzo

BMW Europa CTFZ-10B Macchina per prove di sollevamento del carico con cinghia frenante rotante per camion 2004-2008

Ottenga il migliore prezzo

Contattici

Contatto ora

Descrizione del prodotto

Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force

Product introduction :

The vehicle flat plate test brake line is mainly composed of plate brake tester, which is on the plate simulating the actual flat road. The motor vehicle runs on it at a speed of 5 to 15 km / h, and then implements the braking. The dynamic measurement of the front (or rear) axle braking force, axle (wheel) weight, suspension, sideslip and other items can be completed at one time. Through the different combination of the brake plate, it can also test the brake performance of various motor vehicles such as automobiles, motorcycles, agricultural vehicles, etc. Our company introduces the latest technology from Europe to manufacture the flat brake test bench. It has advanced technology, reasonable design, simple structure, stable performance, convenient use and maintenance, complete functions. It is especially suitable for automobile testing station, repair shop and automobile professional teaching and technical research unit.

Configuration feature:

No need for concrete foundation installation, small occupation of land, convenient installation and commissioning.

No need for 380V power supply, low operating cost, energy saving, saving investment

The plate structure of plate brake tester can be combined in many ways to be suitable for vehicle types and various wheelbases

The design, process and manufacture of the plate of flat brake tester comply with the latest national standards GB21681 and GBT7258

With imported high-precision sensor, fast response, and accurate test. The latest product concept, ultra-thin.

Motor vehicle braking on board, the simulation technology is closer to the actual road conditions, and the test result is more real and reliable

System with a variety of online interface, can match headlight tester and the gas analyzer to form such as multi-function integrated performance test line

Four plates combination can be adopted, which can make the front and rear wheels of the vehicle test at the same time, accurately reflect the brake synchronization of the front and rear vehicles, truly test the brake force characteristic curve and the brake coordination time of the whole vehicle

Technical parameters:

Model	2CTPB-3-4	2CTPB-3-3	4CTPB-3-4	2CTPB-10G	2CTPBH-10
Max. axle-load (kg)	3000kg	3000kg	3000kg	10000kg	10000kg
Braking test range (kN)	10kN	10kN	10kN	35kN	35kN
Sideslip Test Scope (m/km)	0-±10m/km	N/A	0-±10m/km	0-±15m/km	N/A
Braking force error value	≤±3%	≤±3%	≤±3%	≤±3%	≤±3%
Sideslip test precision (m/km)	≤0.2m/km	N/A	≤0.2m/km	≤0.2m/km	N/A
Axle load error value	≤±2%	≤±2%	≤±2%	≤±2%	≤±2%
Weighing plate size	6101500(widthlength)	6101500(widthlength)	6101500(widthlength)	10001800(widthlength)	10001800(widthlength)
Combination	2 plates	2 plates	4 plates	2 plates(4 plates optional)	2 paltes(4 plates optional)
Testing speed (km/h)	5-10km/h	5-10km/h	5-10km/h	5-10km/h	5-10km/h
The power supply	220v 300w	220v 300w	220v 300w	220v 300w	220v 300w
Plate size (mm)	2554×610×50	1760×610×50	4314×610×50	2854×1000×58(2 paltes)	2440×1112×100

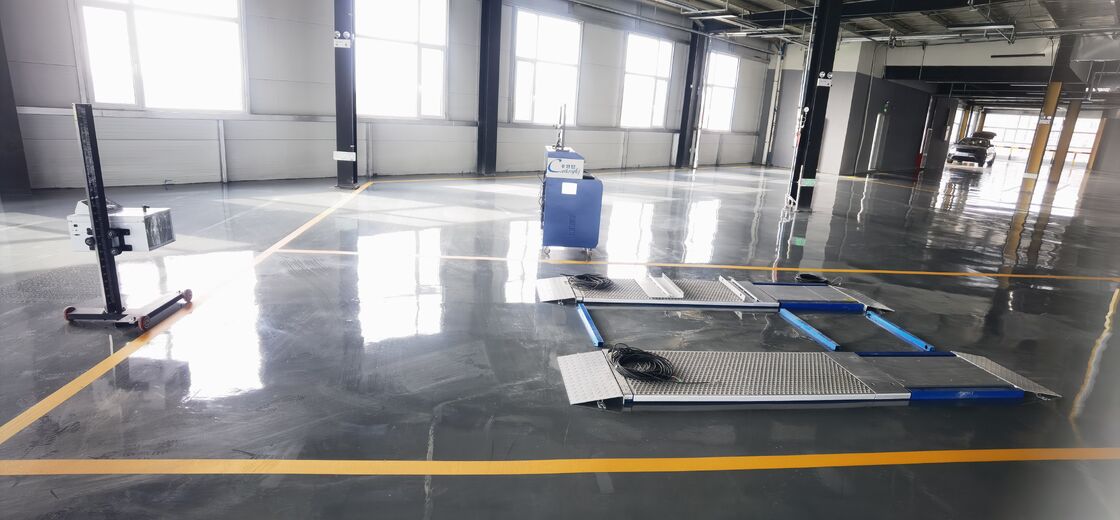

Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force 1

Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force 2

Cartesykj 2CTPB-3-3 4T capacity 2 plates Ultra flat plate brake tester Car Test Line for truck test the brake force 3
